FFC Product Overview

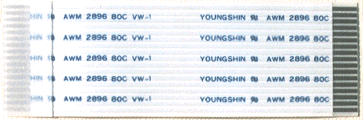

| Standard Type | |||
|
Major
Use: |
Type |
Note |
Audio,
Video, Game M/C, TFT displays, Hand held equipments |
T3 |
Conductors of both ends are soldered on PCBs. | |
P6 |
Same as P7 type but reversed contact openings on both ends. | ||
P7 |
Both side ends are to be inserted in standard FFC/FPC connectors. | ||
T8 |
Single end is to be soldered on PCB and other side to be inserted in standard (FFC/FPC) connector. | ||
|
|
| Super Flex Type (Ultra Flex Type) | |||
|
|
Major Use: CD Player, CD Rom Driver, Notebook PC, DVD Driver |
Super Flex |
Good for CD Laser Pick-up Ass'y. 3.000.000 times of flexibility life. |
Ultra Flex |
Good for CDROM Driver, DVD Driver, Pick-up Ass'y. Printer heads. 10.000.000 times of flexibility
life.* *Please refer to Physical/Mechanical Characteristics. |
||
| Black Color Type | |||
|
|
Major Use: Consumer Electronic equipment which home openings from outside |
Black color insulation type is available by customer requirement. | |
| Fine Pitch Type | |||
| |
Major Use: Camcorder, DVD Driver, Hand held telecom equipment, Note PC |
0.5mm pitch and 0.8mm pitch items are available. | |
| Shielded Type | |||
|
|
Major Use: EMI Application |
Non-Drain Shield cable Shield type FFC with out earth drain. |
|
| With Drain Shield cable Shield type FFC with one or multiple earth drain contact. |
|||
| Shield Type FFC with Copper Band This style FFC is good for digital telecom devices, high frequency receivers. |
|||
| FFC with Metal Terminal Type | |||
|
|
Major Use: Industrial Equipment, Equipment for military purpose |
Male terminal clippings, female terminal clipping with connector housing. | |
| Treatment | |||
|
|
Bending Treatment | ||
|
|
Affixing Stickers | ||
